New 2023 Coachmen RV Catalina Summit Series 7 164RB

Travel Trailer

Stock #4751

Gaylord, MI

1 of 26

+26

Specifications

Sleeps	2	Length	19 ft 6 in
Ext Width	7 ft 6 in	Ext Height	10 ft 1 in
Hitch Weight	394 lbs	GVWR	4394 lbs
Dry Weight	3031 lbs	Cargo Capacity	1363 lbs
Fresh Water Capacity	44 gals	Grey Water Capacity	30 gals
Black Water Capacity	30 gals	Furnace BTU	20000 btu
Available Beds	Queen Murphy	Refrigerator Type	12 Volt
Refrigerator Size	10 cu ft	Cooktop Burners	2
Shower Size	36" x 30"	Number of Awnings	1
LP Tank Capacity	20 lbs.	Water Heater Capacity	6 gal
Water Heater Type	Gas/Electric DSI	AC BTU	13500 btu
Awning Info	10' Power with Multicolored LED Light Strip	Axle Count	1
Number of LP Tanks	1	Shower Type	Standard
Electrical Service	30 amp	VIN	5ZT2CAEC1PK005567

Description

Coachmen Catalina Summit Series 7 travel trailer 164RB highlights:

Rear Bath
Murphy Bed
Sofa
Heavy-Duty Table
Pass-Through Storage

Camping for two, anyone? This cute Catalina Summit Series 7 is the perfect camper that provides you with both a living space and a sleeping space all while keeping it under 20'. This unit comes in at 19' 6" to be exact, and with the 60" x 74" Murphy bed layout you can have both a comfortable place to sleep at night, and during the day it's all tucked away behind a wall and a sofa sits in its place. You don't even have to make the bed! A rear bath offers a 36" x 30" shower, toilet, and linen cabinet for your towels and toiletries. The sink is just outside the bathroom door on your left. For cooking inside, you will have a two burner cooktop and a microwave oven, plus plenty of solid surface countertop prep space. On the outside, a 10' power awning with multicolored LED light strip will make a wonderful outdoor living space to enjoy both during the day and at night keeping you protected from the elements. And, the large front pass-through storage space allows you to take along all of your necessities to have a great time.

With any Catalina Summit Series 7' by Coachmen RV, you can create an easier adventure with the versatility and simplicity of the shorter lengths and lighter weights! Each includes a premium exterior graphics package, a smooth HD aluminum radius front, and Dexter EZ lube axles with leaf spring suspension. The exterior offers a heavy duty standard tongue jack, a diamond plate rock guard to protect against road debris, exterior RG-6 coax cabling and satellite prep, rear view camera prep, and flush mount baggage doors with radius corners for your outdoor gear. Inside, you will enjoy premium JBL interior speakers, USB charging ports, seamless Thermofoil countertops throughout, an under-mount farm style sink for easy cleanup, and a Slim Line range hood to keep the cooking smells outside. It's time to choose an affordable and maneuverable single axle trailer today!

Features

Standard Features (2023)

Exterior

Electric Awning w/Multicolor LED Strip & Remote
Black Tank Flush
Battery Disconnect Switch
Siphon 360 Holding Tank Roof Vent
Heavy Duty Standard Tongue Jack
(1)20lb. LP Tanks
LP Quick Connect (w/CK)
Flush Mount Baggage Doors w/Radius Corners
Diamond Plate Rock Guard
Stabilizer Jacks
G20 Tinted Privacy Windows
Premium JBL Exterior Speakers(s)
Friction Hinge Door
Radius Cornered Fiberglass Entry Door
Exterior 110V G.F.C.I Protected Receptacle
Exterior RG-6 Coax Cabling and Satellite Prep
Rain Gutters with Drip Spouts
SolidStep Entrance Steps IPO Flip-Down Steps (Main Entrance Only) (n/a 164BHX)
Rear View Camera Prep
Bottle Openers (Exterior Camp Kitchens)
Pets - "Leash Link" Quick Hookup D-Ring
Universal Solar Prep w/Roof & Chg. Controller Connections & Wiring

Interior

One Control Smart RV Tech Monitor Panel (uses LCI OneControl - App)
Premium Audio JBL Aura Cube Multi-Zone Function Media Center
Premium JBL Interior Speaker(s)
10 Cu. Ft. 12V Refrigerator (n/a 164BHX: has 3.3 cu. ft.)
Seamless Thermofoil Countertops Throughout
Under-mount Farm Style Sink
High Rise Bullet Style Kitchen Faucet
2 Burner High Output Cooktop w/Flush Glass Top
Slim Line Range Hood
SST Microwave W/Glass Turn Table
Congoleum Woodplank Linoleum Flooring
4000 Lumen LED Interior Lighting
Jiffy Sofa w/Flip Down Cup Holder/Arm Rest
Easy Access Kickboard Storage Underneath Jiffy Sofa (Per Floorplan)
Murphy Bed Sofa (Per floorplan)
Hard Valance Window Treatments
Pedestal Thermofoil Dinette Table (184BHS)
Portable Dinette Table (N/A 164BHX, 184BHS)
Under Bench Dinette Storage (Per Floorplan)
12V 14" Bathroom Power Vent Fan
Marine Toilet with Foot Flush
ABS Tub/Shower Surround w/Shelves (n/a 164BHX)
Mirror
Bedroom Surface Mounts USB Ports (Each Night Stand)
Kitchen USB's & Outlets
USB Surface Mounts Near Bunk Beds
Master Bedroom Overhead Shelf
Designer Fitted Master Bed Sheet
Teddy Bear Bunk Mats
Full Lino in Slide-Outs and Bedrooms (Carpetless)

Construction & Equipment

Cambered Structural Steel I-Beam Frame
New Road Defense Chassis Powder Coating
Full Length Frame Outriggers
5/8" Tongue & Groove Plywood Floor Decking
2"x2" Floor Joists on Approximately 12" Centers
4" Floor To Frame Steel Lag Bolts
Darco Subfloor Protective Wrap/Enclosure
Seamless Alpha Roof Membrane with Lifetime Warranty
Cross-Braced Engineered Roof Trusses w/5" Crown
3/8" Fully Decked Walk-On Roof
Screwed Cabinet Construction w/Pocket Bored Lumber Core Stiles
Hardwood Cabinet Doors
5/8" Plywood Under Bed & Dinette Base
78" Interior Height (6'6")
Norco Cable Slide Out
R-7 Fiberglass Insulation Throughout
6 Gal. Gas/Electric DSI Water Heater
Water Heater By-Pass Winterization Kit
12V Demand Water Pump
Premium Exterior Graphics Package
Platinum .024" Aluminum Exterior w/.030 Skirt Metal
Smooth HD Aluminum Radius Front
Dexter EZ Lube Axles w/Leaf Spring Suspension
Self Adjusting Brakes
Roto-Cast Holding Tanks
Bumper w/ Drain Hose Carrier and End Caps
19,000 BTU Direct Furnace w/Wall Thermostat
13,500 BTU Central A/C
30 Amp Elect. Service w/ 100v 45-Amp Power Convertor.
Rugged Pro Black Steel Wheels
Magnetic Hands Free Baggage Door Latches

Safety Features

Smoke Alarm
LP/CO Gas Detector
Fire Extinguisher
Fire Escape Windows
Entrance Door Window
Dead-Bolt Lock on Entry Door
SafeRide RV Motor Club (1 YR Roadside Assistance)

Options

7 Cu. Ft. LP Gas/Electric RV Refrigerator w/Reversible Door Inserts
Peak Performance Solar Package - 30A Controller w/ 200W Panel
Steel Fold-Down Steps IPO SolidStep Entrance Steps (Standard 164BHX)
Exterior Camp Kitchen (184BHS)
Spare Tire w/ Tire Carrier (N/A 164BH/164RB)
CSA Standards

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.

Favorite RVs

Save your favorite RVs as you browse. Begin with this one!

Please give them a chance to help you with your needs.
If you are looking for a RV please check out this place. We bought a fifth wheel from them. We had Kaytlyn. She was a great salesman. We were having a problem with our leveling system which we couldn’t get to work correctly. I called and they sent Tim the technician out to our campsite to help us. He

Ginnylyn
FANTASTIC Customer Service
Having no appointment and coming as a drive by, the team responded with professionalism, expediency, and care regarding an issue with our water pump. Tim was quick to assess and determine that it was a blown fuse. We were in and out in 30 minutes, thanks to the great team!

Mark from Clinton Township, MI
We would definitely recommend Northern Michigan RV
We recently purchased our new fifth wheel from Northern Michigan RV. They gave us a very fair price on our trade as well as made the buying process smooth and seamless. Staff was friendly and knowledgeable. The prices can’t be beat. Locally owned and operated. We are very pleased with how everything

Jackie

We are here to help, call us at
989-448-8700 or Contact Us

We are here to help!

989-448-8700
Contact Us
Click For More Info

Northern Michigan RV is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @989-448-8700 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.

Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.

New 2023 Coachmen RV Catalina Summit Series 7 164RB

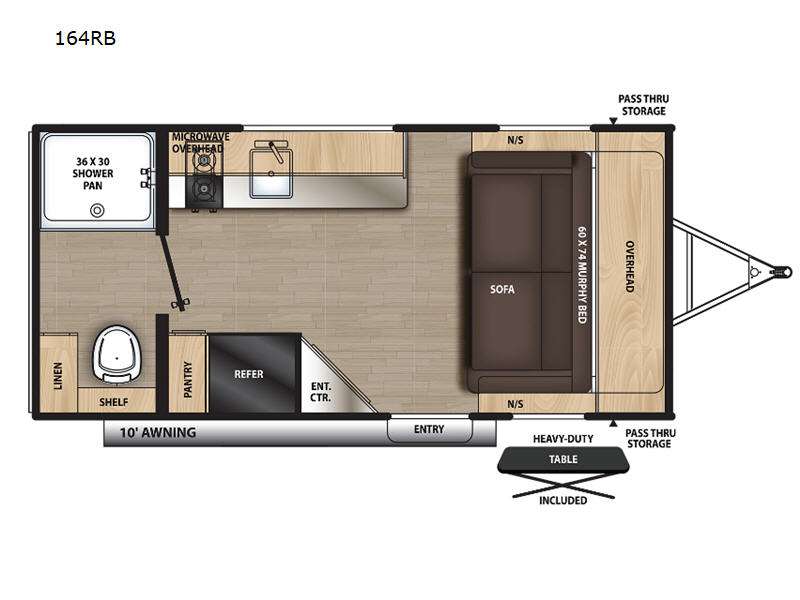

164RB Floorplan
